10BL60 G2 60A Waterproof Brushless ESC

10BL60 G2 60A Waterproof Brushless ESC

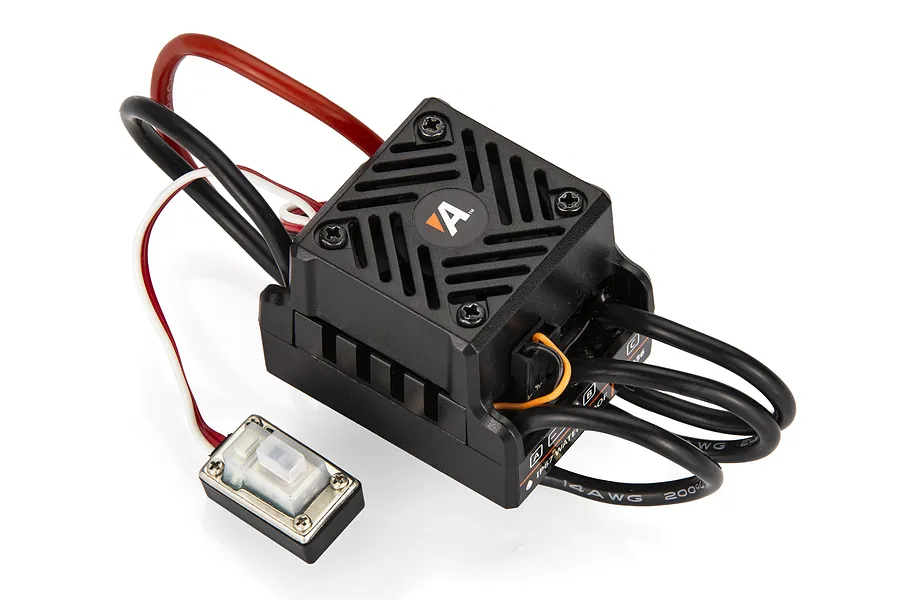

Atrek 10BL60 G2 60A Waterproof Brushless ESC image 138256

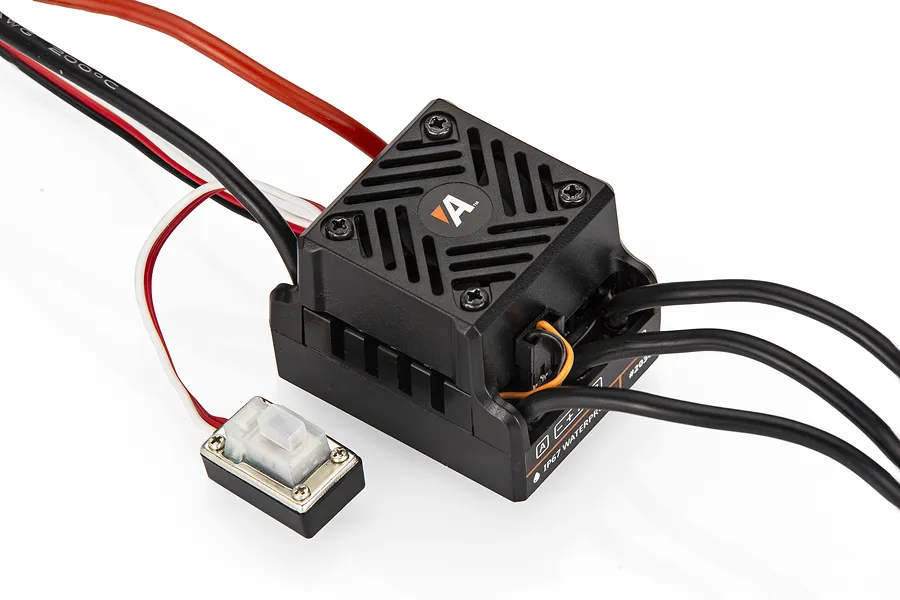

Atrek 10BL60 G2 60A Waterproof Brushless ESC image 138257

10BL60 G2 60A Waterproof Brushless ESC

available
$89.99 RRP
Where to Buy

Find stockists for all Atrek products.

Description

Power your 1/10th scale vehicle with the reliable and robust Atrek WP (Waterproof) 10BL60 G2. This 60A brushless ESC (Electronic Speed Control) is designed for all-weather operation, boasting an IP67 (Ingress Protection) rating that provides excellent protection against water and dust, allowing you to run in a variety of harsh conditions.

Engineered with intelligent freewheeling technology, the G2 runs cooler and more efficiently than its predecessor. It features an effective cooling system with a fan and a built-in capacitor overheating protection function for superior reliability. The ESC is compatible with 2-3S LiPo (Lithium Polymer) batteries and includes a 6V, 3A switch-mode BEC (Battery Eliminator Circuit) to power your vehicle's electronics.

With its compact design and simple programming options via the onboard SET button or an optional programme box, the Atrek 10BL60 G2 is a fantastic, high-quality choice for entry-level users all the way to experienced bashers that are looking for a dependable brushless power solution.

Features

  • Features intelligent freewheeling technology for higher efficiency and lower running temperatures

  • A fully IP67 waterproof and dustproof design allows for all-weather operation

  • Built with a robust and efficient cooling system, including a mesh heat sink and fan

  • Includes capacitor overheating protection to prevent damage from overload usage

  • Compact and lightweight design makes for a clean and easy installation in most 1/10 vehicles

  • Supports multiple programming methods, including the SET button and optional program boxes

  • Capable of handling up to 3S LiPo power for high-speed performance

  • Genuine Atrek RC Product

Specifications

  • Length: 46mm (1.81")

  • Width: 36.5mm (1.44")

  • Height: 34.3mm (1.35")

  • Weight: 82.6g (2.91oz) (Included wires & connectors)

  • Continuous/Peak Current: 60A/360A

  • Waterproof: Yes

  • Motor Limit: 2S LiPo: KV≤6000；3S LiPo: KV≤3500（3652/3660 size motor）

  • BEC Output: Switch Mode 6V @3A

  • Voltage Limit: 2-3S Lipo

  • Programmable: Yes

  • Scale: 1/10th

  • Sensored: No

Included Items

  • 1x Atrek 10BL60 G2 60A Waterproof Brushless ESC

  • 1x Instruction Manual

Specifications
ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
Yes
Burst Amps
360A
Continuous Amps
60A
Motor Connectors
4.0mm Bullet
Battery Connector
Deans
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V
Dual Motor
No
